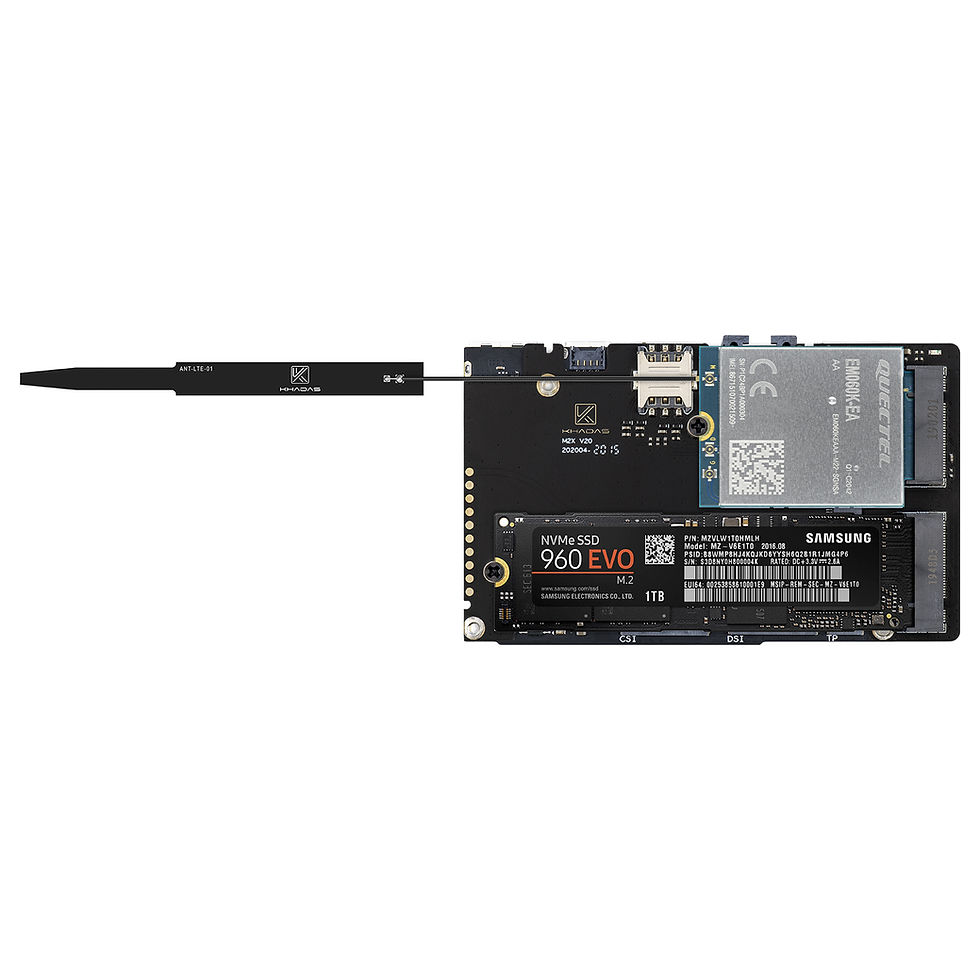

Add 4G LTE capability to your VIM3/3L single-board-computer with the Quectel EM06 4G LTE Module. This module is compatible with both the New M2X Extension and Original M2X Extension boards. Please note that Khadas' version of this 4G module does not include GNSS support.



Features:



  • MIMO (2x2, 4x2, DL)
  • (U)SIM Card Detection
  • DTMF
  • Dual SIM Single Standby
  • DFOTA



Region/Operator:



  • EM06-A - North America / Mexico
  • EM06-E - EMEA / APAC / Brazil



Frequency Bands:



  • EM06-A
    • LTE-FDD - B2/B3/B5/B7/B12/B13/B25/B26/B29/B30/B66
    • LTE-TDD - B41
    • 2xCA -
      • B2+B2/B5/B12/B13/B29
      • B4+B4/B5/B12/B13/B29
      • B7+B5/B7/B12/B26
      • B25+B5/B12/B25/B26
      • B30+B5/B12/B29
      • B66+B5/B12/B13/B29/B66
      • B41+B41
    • WCDMA - B2/B4/B5



  • EM06-E
    • LTE-FDD - B1/B3/B5/B7/B8/B20/B28/B32
    • LTE-TDD - B38/B40/B41
    • 2xCA -
      • B1+B1/B5/B8/B20/B28
      • B3+B3/B5/B7/B8/B20/B28
      • B7+B5/B7/B8/B20/B28
      • B20+B32, B38+B38
      • B40+B40
      • B41+B41
    • WCDMA - B1/B3/B5/B8



Check which frequency bands are supported by your carrier:





Certifications:



  • EM06-A - GCF, FCC / PTCRB, IC
  • EM06-E - GCF, CE, NCC, RCM, ICASA, RoHS, WHQL



Dimensions:



  • 42.0 x 30.0 x 2.3 MM



Compatibility:





Documentation:





In The Box:



  • 4G Module (A or E)
  • LTE Antenna
  • M2 Mounting Screw x1

Quectel EM06 4G LTE Module

$59.90Price
Select Type
