SBC Makeovers: The coolest DIY Case for coders!



The DIY Case is designed for folks who love to make things: you can get fun, bright, and fabulous with the VIMs board, but you always get confused if you want to show something to your friends.
Now it's time to show off your SBC board with your own case creations.



Highlights

  • Compatible with VIM2 v1.4 and VIM1 (requires slight DIY-modification for Edge-V)
  • Suit for New VIM Heatsink (VIM2 v1.4, VIM1) and Original VIM Heatsink (VIM1)
  • Cooling fan mountable (3705 Cooling Fan)
  • All primary ports including buttons accessible
  • Clip-on GPIO lid allows access to those wonderful GPIO pins
  • Removable top and bottom covers for stacking up on cluster application
  • Power and activity lights visible through the end of the case
  • Infrared remote controller works excellent
  • Snug and secure fit protects your VIMs board and looks gorgeous



Tech Specs



Material:

  • Metal Plate: Iron
  • Case: Polycarbonate



Color: Purple / Red / Transparent



Weight:

  • Metal Plate: 69g
  • Case & Screw Sets: 43g
  • Product: 112g



Dimensions:

  • Metal Plate: 82.3 * 56.8 * 2.3mm
  • Product: 96.5 * 70.0 * 23.5mm



Compatibility

  • Khadas VIM1
  • Khadas VIM2 v1.4
  • Khadas VIM3 v11 and higher
  • Khadas VIM3L v12 and higher
  • 3705 Cooling Fan
  • 3004 Cooling Fan
  • New VIM Heatsink
  • Original VIM Heatsink



Compatible with DIY-Modification:

  • Edge-V (cut a slot for the second USB-C port on the bottom)
  • 3705 Cooling Fan (raise the top-cover by 1-2mm using spacers)



Incompatible

  • Edge



In the Box

  • DIY Case
  • Screw Sets
  • Metal Plate (Optional)



Assembly Instructions

Khadas YouTube Channel

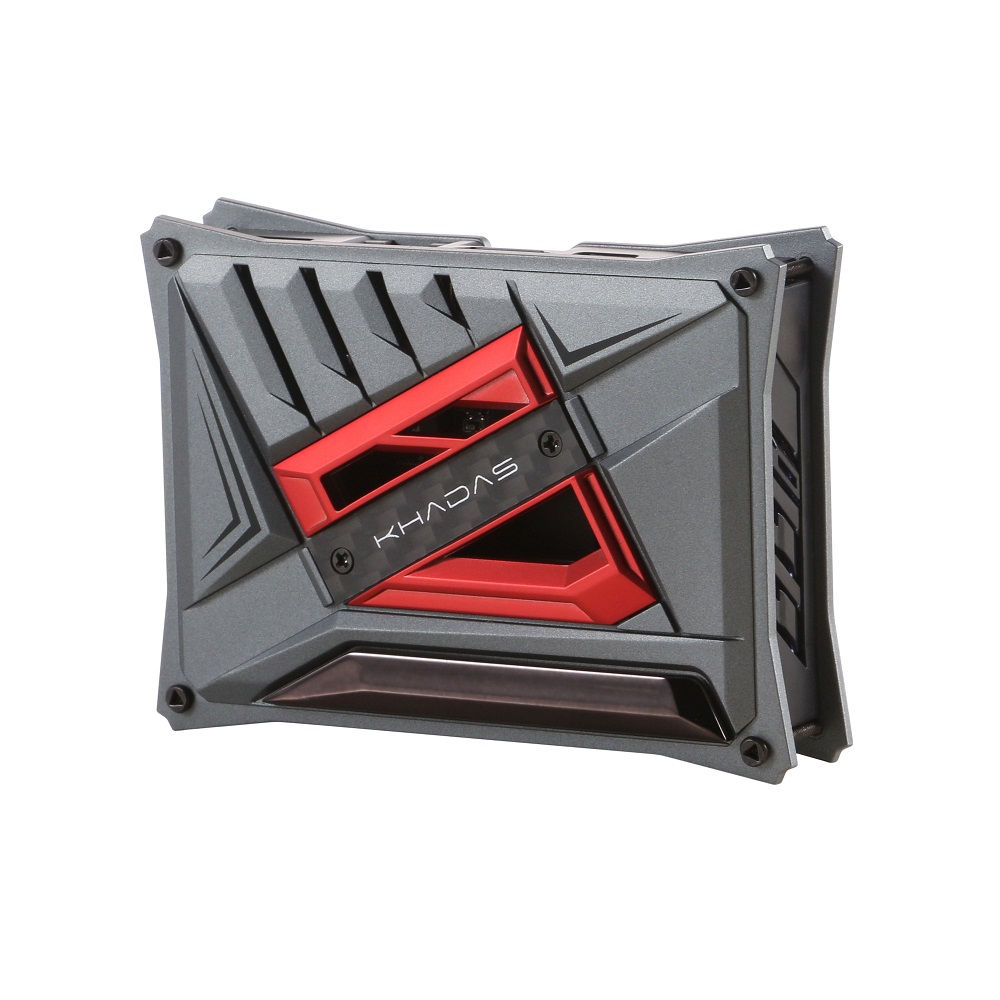

DIY Case

$14.99Price
