CAPTAIN

Carrier Board for Edge

FEATURES

EXPAND YOUR EDGE
314-pin MXM3 connector for docking with Edge.

DOCK WITH THE CAPTAIN

Captain is equipped with a 314-pin MXM3 connector that lets you modularly expand the features & capabilities of your Edge SBC. Use the Captain or design your own carrier board. Edge software can be configured to automatically detect your board.

ADD TOUCH
Captain can support a 1080P touchscreen.



5-INCH, 1080P, 5-POINT MULTITOUCH

Add a 5-inch, 1080P, 5-point multi-touch LCD screen to your Captain, and turn it into a mobile gaming device, or mini-tablet computer. LCD screens can interface with the Captain via the eDP and TP connectors.

GESTURE SENSOR
Captain can detect your hand movements.



APDS-9960 MODULE

Captain is equipped with the APDS-9960 gesture detection module. It has light-sensing, RGB colour sensing, proximity detection, in addition to gesture detection.

M.2 SLOT + BATTERY
Full 4-lane PCI-E M.2 slot and a battery charging circuit.



NVME SSD & LIPO BATTERIES

On the backside of Captain, you'll find a full 4-lane PCI-E M.2 slot for attaching NVMe SSDs, perfect for large machine vision models or just a home theatre rig. In addition, there's also a lithium polymer battery socket, equipped with a high-efficiency charging-IC, for when you need to go mobile.

INTERFACES
Captain expands the I/O on your Edge or Edge-1S.



POWER PRIORITY
Captain and Edge can keep each other powered-up.



POWER PRIORITY

Captain can be powered by its 12V DC barrel jack, or a docked Edge SBC. In this state it will provide electrical energy to charge an attached Lithium Polymer battery pack. If no sources of external power are available, Captain will use the attached battery to keep itself and the Edge powered.

SPECIFICATIONS
Captain technical specifications.

Model

Khadas Captain

Camera

Interface: 4 lanes MIPI-CSI

Dual 13 MegaPixels Supported

Connector: 30 Pin 0.5mm Pitch FPC Connector

4 lanes MIPI-DSI

4 lanes eDP 1.3, up to 10.8Gbps

Display

10PIN 0.5mm Pitch FPC Connector

Touch Panel

M.2 Socket

4 full-duplex lane PCIe 2.1

M.2 2280 NVMe SSD Supported

LAN

10/100/1000M, Support WOL Feature [1]

TF Card

SD 3.0, up to 256GB

Gesture Control

APDS-9960

Digital Proximity, Ambient Light, RGB and Gesture Sensor [2]

Motion Tracking

ICM-20602

6-axis: 3-axis gyroscope, 3-axis accelerometer

Audio

Realtek ALC5651 Audio Codec

3.5mm Headphone Jack

Microphone Sensitivity: -42dB

Speaker(via FPC)

DC Jack

Input Voltage: 12V

Outer/Pin Diameter: 5.5/2.1mm

Battery

2-Cell Li-Ion Battery

Fuel Gauge IC: CW2015

Connector: 7 Pin 1.25mm Pitch Header

RTC Battery Header

0.8mm Pitch Header

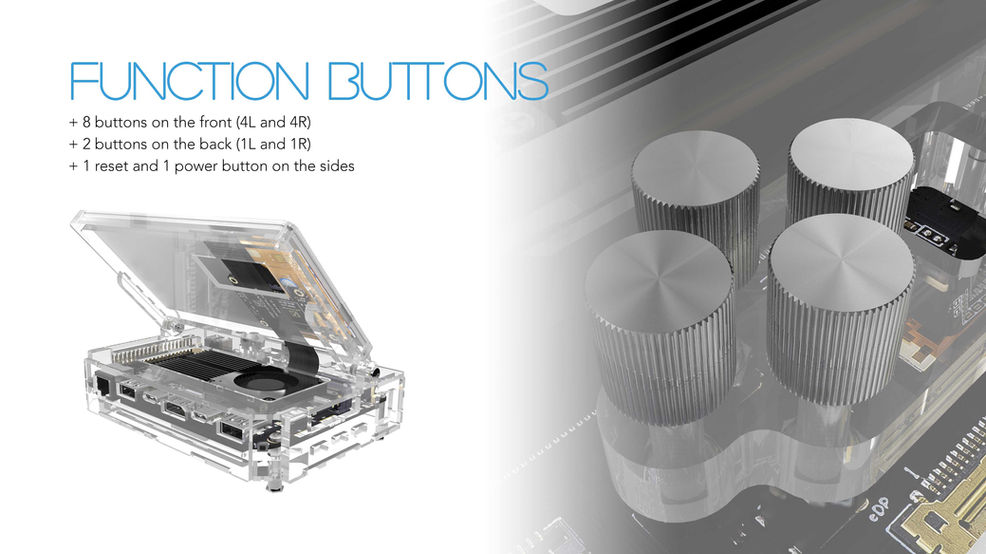

Buttons

x8 (Programmable Game Pads)

x2 (Left & Right Function Buttons)

x2 (Reset, U-Boot/Func)

Wi-Fi Antenna

Chip Antenna x2

Model: Pulse W3006

2.4-2.5/5.15-5.85GHz Dualband

Buzzer

SPL: > 75dB (distance at 10cm)

Response Time: < 40ms

Oscillation Frequency: 4000Hz

IR Receiver

2 Channels

LED

Red LED x1, Programmable

USIC

via a 1.25mm Pitch Header

40 PIN 2.54 Header

USB, I2C, SPI, I2S, SPDIF, ADC, STM8S MCU IOs [3]

Mounting Holes

Size M3 x 4

Board Dimensions

82.0 x 116.0 x 13.5 mm

Board Weight

52g

Compatibility

Khadas Edge

Certifications

CE, FCC, RoHS

[1] WOL: Boot on or wake up the Edge remotely over LAN through APP or webpage.
[2] Gesture: Can power on/off the Edge over gestures, this feature is disabled by default.
[3] GPIO: Most of the pinmap compatible with VIMs.
